GRP Lining (Glass Reinforced Plastic Lining)

GRP lining waterproofing (Glass Reinforced Plastic lining) is a high-performance, seamless waterproofing system that consists of a resin-based coating reinforced with fiberglass (glass fibres) to form a strong, rigid, and fully bonded protective membrane over concrete, masonry, or steel surfaces.
The system is applied in multiple layers, where the reinforcement is embedded within the resin to enhance tensile strength, crack-bridging ability, and long-term durability. Once cured, it creates a joint-free, chemically resistant, and watertight barrier that effectively protects structures from water ingress, corrosion, and chemical attack.
GRP lining is widely used in demanding waterproofing applications such as water tanks, sewage tanks, basements, wet areas, and industrial structures, where high durability and long service life are required. Its excellent adhesion to substrates and ability to withstand harsh environmental conditions make it a reliable solution for critical waterproofing systems.

Application Procedure

Substrate Preparation & Moisture Analysis

Perform mechanical grinding or grit blasting to achieve an open-pore texture, ensuring the surface is free of contaminants and moisture levels are below 5% before proceeding.

Resin Priming & Bond Enhancement

Apply a high-penetration resin primer to the prepared surface to anchor the system and ensure maximum adhesion between the substrate and the GRP laminate.

Fiberglass Reinforcement & Saturation

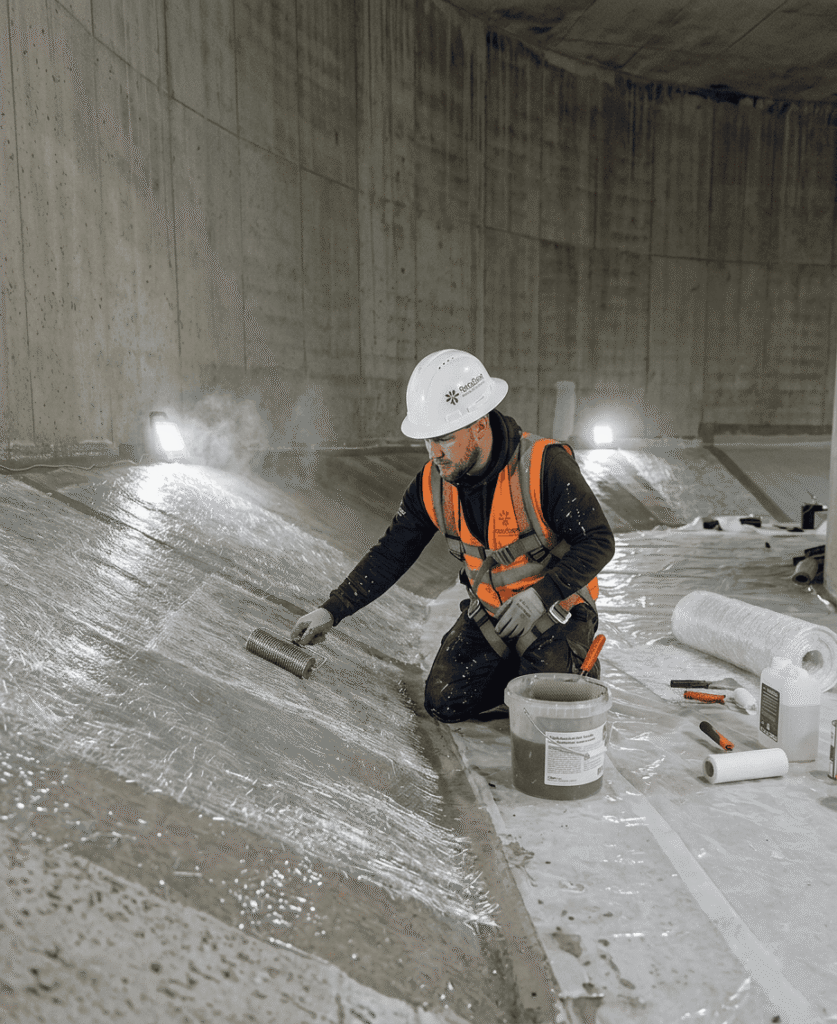

Lay the Chopped Strand Mat (CSM) into a wet bed of catalyzed resin, using ribbed rollers to thoroughly saturate fibers and eliminate all trapped air pockets.

Lamination Layering & Consolidation

Apply subsequent layers of resin and glass reinforcement to achieve the specified thickness, ensuring a dense, void-free composite structure across the entire area.

Surface Refinement & Smoothing

Once cured, sand down any glass protrusions or sharp “needles” to create a uniform surface profile ready for the final protective finishing.

Top Coat (Flow Coat) Application

Apply a final pigmented, tack-free resin coating to provide UV protection, enhance chemical resistance, and deliver a smooth, aesthetic finish to the lining.

Holiday Testing & Final Certification

Conduct a high-voltage spark test (Holiday Test) to detect any microscopic pinholes, ensuring a 100% watertight customization of the protective barrier.

Material Composition

A high-performance composite system consisting of Isophthalic or Vinyl Ester resins reinforced with E-Glass Chopped Strand Mat (CSM) to form a rigid, glass-hard protective barrier.

Chemical Resistance

Engineered to withstand aggressive environments, including sewage gases (H2S), industrial acids, and alkalis, making it ideal for wastewater and chemical storage.

Structural Durability

Provides a high strength-to-weight ratio with superior tensile and flexural properties, effectively creating a "tank-within-a-tank" that reinforces the host structure.

Seamless Integration

Once cured, the system forms a completely monolithic, joint-free lining that eliminates potential leak paths and provides a smooth, non-porous finish.

Got Questions? We’re Here to Help

1. What is GRP lining and how is it used for waterproofing in Dubai?

GRP lining is a Glass Reinforced Plastic waterproofing system used to create a durable and seamless waterproof surface for roofs, tanks, and wet areas in Dubai.

2. Why is glass reinforced plastic lining preferred for waterproofing systems in UAE?

GRP lining offers excellent waterproofing, corrosion resistance, and durability, making it highly effective for UAE’s demanding climate.

3. Can GRP lining be used for roofs, tanks, and wet areas in Dubai buildings?

Yes, GRP lining is suitable for roofs, water tanks, wet areas, and industrial waterproofing projects across Dubai.

4. How does GRP lining resist harsh UAE weather and chemical exposure?

Its reinforced structure provides high resistance against UV rays, chemicals, moisture, and temperature fluctuations.

5. Is GRP lining suitable for commercial and industrial waterproofing projects in Dubai?

Yes, GRP lining is widely used in commercial and industrial buildings for long-lasting waterproof protection.

6. What are the long-term waterproofing benefits of GRP lining in UAE properties?

GRP lining offers leak prevention, structural protection, and reduced maintenance requirements.

7. How does GRP lining prevent cracks and leaks in building structures?

It forms a seamless waterproof membrane that seals vulnerable areas and prevents water infiltration.

8. Why choose Roofcare for GRP lining waterproofing solutions in Dubai?

Roofcare provides professional GRP lining installation with high-quality materials and expert workmanship.
